JACK UP BARGES AND JACK UP VESSELS FOR SALE

JACK UP BARGE  (REF#979)

JACK UP BARGE
Manufactured 1974 in Japan, GT 405 tons, Dimensions: 114 x 65 x 11, 35 x 20 x 3.4m (center open 12.9 x 6.6 x 3.4m), M/E Isuzu 150ps x 2 sets 125Kva, A/E Isuzu 1800rpm x 1 set 220V x 15Kva, type Kawasaki IHC-Gusto type, Capacity: Jacking- 1240T, Holding 2100T, spud length 43.5m, winch:  8 tons x 6m/min x 4 sets, anchor: 3.5 tons x 4 sets, last DD: May 2010 / repainted at same time, hydraulic part (line / pump unit / packing / piping) was repaired in 2010, generator engine was overhauled in 2010, some part of hull plate was replaced in 2010
Located in Korea  PRICE:  $3,200,000

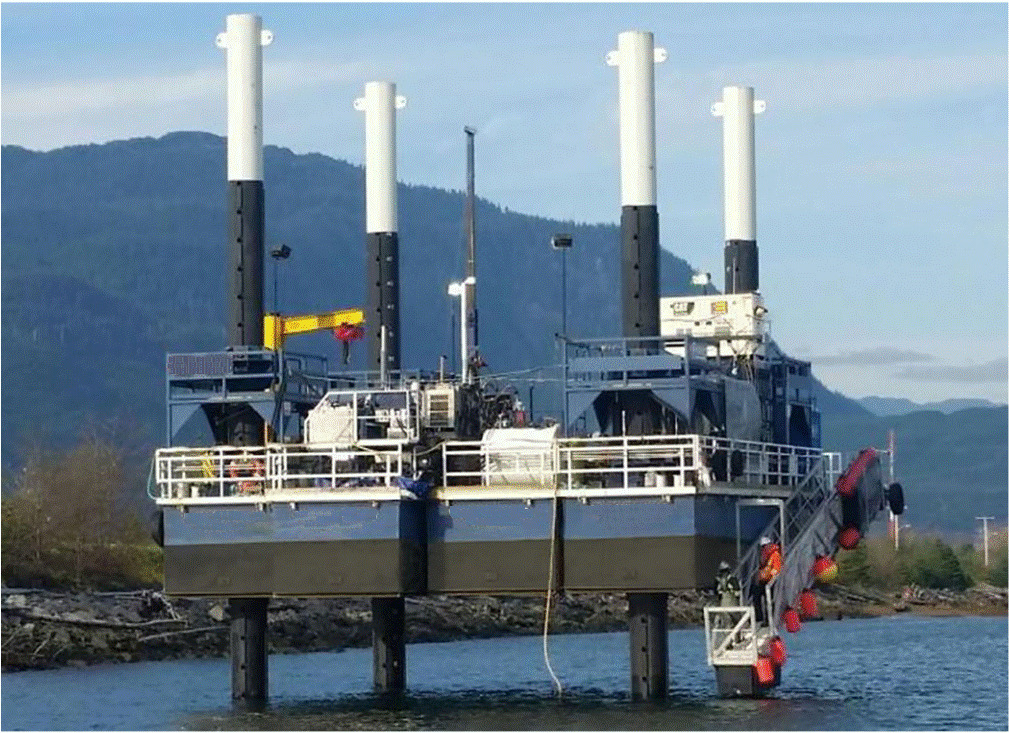

91’ x 70’ x 9.28' JACKUP BARGE (Ref#1799)

jackup barge

Built 1964. Currently In class - due for dry-docking in September 2015; could be extended for two months. (2) Hydraulic Dowty pumps for jacking operation. (6) jackup legs - 142x34 OD, Operates through a series of hydraulic rams, legs are fitted with 16' hex pads to rest on bottom. Lift capacity 368,000lbs. Electric power supplied by (2) 125kw alternators, driven by 6V71 Detroit diesel engines. 2000 Gallon diesel oil bunker tank. (2) 400 gallon service tanks. GRT: 510, NT: 510. Located Canada. Price: $350,000


JACK UP BARGE  (Ref#667)   FOR RENT

jackup barge

90’ x 50’ x 7’, Built 1998, Flexi Float sections, 100’ spuds, self-elevating. Price: $55,000 per month. 18 truck loads.
90’ x 50’ x 7’, Built 2010, Flexi Float sections, 80’ spuds, self-elevating. Price: $65,000 per month. 18 truck loads.


SHAKERTON JACK-UP BARGES (Ref#873a):
A: 80’ x 60’ x 7’ HD: Series SHAKERTON JACK-UP
(7) HD: 407 40’ x 10’ x 7 ‘ Standard Sections
(1) HDR:  407 40’ x 10’ x 7 ‘ Raked Sections
(5) HD: 207 20’ x 10’ x 7 ‘ Standard Sections
(1) HDR: 207 20’ x 10’ x 7 ‘ Raked Sections
(4) SHAKERTON HD: 1042 Well Section
(4) SHAKERTON HD: 3680 Jack Spuds 80’ long
(8) SHAKERTON HD: 1048 Lift Cylinders
(2) Complete Hydraulic Power Units
Jack System comes turn key ready.
Price: $1,800,000
MADE TO ORDER


FLEXIFLOAT SELF ELEVATING PLATFORM BARGE  (Ref#953

jack-up barge

2 available, 80’ x 50’, manufactured 2004, consists of:  Series S-70 equipment:  (6) quadrafloats 40’ x 10’ x 7’, (4) duofloats 20’ x 10’ x 7’, (4) elevating spud wells 36” diameter, (4) elevating spuds 36” x 80’, (2) hydraulic pumping units 90 hp diesel, (8) hyd hose sections 30’ length, (8) deck cleats, 180,000# - 200,000# capacity  Price:  $1,950,000 and $2,400,000.  Charter $70,000 per month


71' x 33' LIFT BOAT (Ref#2836)

Built 1982, Overhauled 2004-2006. 71' x 33' x 6', 5' draft (max), Elevation depth 60' max (55' offshore - max). Work area: 877 sq. ft. (20' x 43' fore deck). GRT 63, Main engine: (2) 6-V71 Diesel, (2) Twin Disc MG506. Generators: (2) 19kw diesel generators w/ 30KW Deutz F3L912. New in 2009, 24" x 80' legs and towers. In 2006 Additional side sponsons added. 5 ton crane, 40' reach. (2) S/W Pump. Moon pool: 10" through deck. 800 gal potable water capacity. Galley with stove, microwave, refrigerator. Located Northeast. Not to be used in the Northeast US. Price: $400,000


LIFTBOAT JACK UP VESSEL  (Ref#1127

jack-up vessel

Manufactured 1983, 79’L x 59’W x 8’H, open space 2800 sq ft, 192 GT, 150 NT, main deck carg o 105 (kips).  (4) 148’ x 42” legs (5/8” wall thickness braced), 22’L x 12’W x 24” depth pads (raked all sides), 70 ton crane with 80’ boom, 10 ton aux crane with 50’ boom.  Main engines: (2) 12V71N GM (680SHP), 3:1:1 reduction gear (twin disc ratio), 8 knots.  (2) Deep Well Pumps, (2) electric 400a welding machines, satelilite phone with internet, (2) 80kw Delco generators w/(2) 6V71N GM engines, 7500 gal fuel, 9800 gal potable water, navigation equipment, 28 berths (including boat crew), central A/C and heaters, Lounge w/Satellite TV, 4 heads, galley seats 16, laundry.  Maximum working depth 90’ (w/25’ air gap), Max sea conditions: 4’ hard, 5’ soft bottom, 8-10 fpm speed.  Working in USA  Price:  $5,700,000


LIFT UP JACKUP VESSEL (Ref #1635)

jackup vessel

131’ x 77’ x 120’, Open Deck Area 3,500sqft, Max Deck Cargo 300 Kips, ABS Loadline only MARPOL USCG Subchapter L, GT 200, 3 legs – 52” diameter x 1 ½ wall thickness x 175’ w/o pads, pads 28’x13’, (2) Cranes: 100ton Hyd w/Cummins engine, 25 ton w/ Cummins 6CTA 8.3M, Main engine: (2) Cummins KTA 38-MO / 850HP each, PTO (2) Driving Hyd pumps, (2) Reduction gears – twin disc, Generator drive: Cummins 6BT 90kW. Capacities: Fuel: 10,300 gal, Fresh Water: 17,000 gal, Lube oil: 250 gal, Hydraulic oil: 1,000 gal, Dirty oil: 250 gal, Oily bilge water: 250 gal, Zero Discharge Tank: 1,750. Accommodations: 9 staterooms, 36 berths. Navigation equipment, life-saving equipment. Located USA. Price $8,500,000


SELF-PROPELLED JACK-UP BARGE  (Ref#1067

jack-up

Built 1976, Class 105, 64’L x 32’W x 7’8”D, leg length 98’6”, 14 x 14 foot pads, max water depth 66’, L/S displacement 155.28, GT, 99.34, NT 67, 44.64 LT deck cargo, 2200 gal fuel capacity, 450 gal fresh water (winter), 1600 gal fresh water (watermaker output 35 gal/hr), (2) 8V71 Detroit diesel propulsion engines with twin disc clutch, AC Delco 40kw generator w. Detroit 371 and Isuzu 20 kw diesel generator, 15 ton crane, full galley, spleets 8, 12” moon pool, Hypack positioning system, media room, safety system, man overboard alarm system, fire alarm systems, stability monitoring system.  On contract which ends August 2013;  located in Northeast USA.  Owner will consider sale, lease or assign current contract with the vessel  Price:  $1,000,000


18 METER / 59’ JACK UP BARGE  (Ref#1519

jackup barge

Built 1999, rebuilt 2008, 15 Ton capacity, Modular form can be transported in two truckloads.  Located Europe  Price: 280,000 EUR


39' x 14' JACKUP WORKBOAT BARGE (Ref#2609)

2 available, Built 1998. 40' leg length, hydraulically operated. 3.5 ton x 40' length hydraulic crane. 10,000lb deck capacity. Draft: 18" with 10,000lb deck load. Propelled by 4V71 Detroit diesel, Twin Disc gears, 150 gallon fuel tank. 7Kw generator. Pilot house with GPS, Marine radio, AC, instrumentation. Vessel jacks and crane operated hydraulically. Truckable in 2 loads. Located Louisiana. Price: $195,000 each


40’ x 40' (2240 sq ft) JACKUP PLATFORM (Ref#2526)

jackup platform jackup barge

Built 2008. Original build cost nearly $3,000,000.  Has seen limited use, in water only 2 months total. Currently on land, no corrosion. Consists of (5) center sections, 40' x 8' x 8'6", (1600 sq ft deck area) weight: 22,000lbs each.  Deck load capacity 100 metric tons. (1) has moon pool, (4) 19'10.5" x 8' x 8'6" configured as standard sea containers. Bolt together with (4) 20'x8’ (160 sq ft each, 640 sq ft total) sections in each corner to hold legs, and (4) spuds 3' x 113'. Raised by (2) Caterpillar power packs located below deck, any one can raise entire platform. Uniquely configured to enable shipment as standard sea containers.
Standard Dimensions             Jack-up Component Dimensions
Length:            19’ 10.5”          19’ 10.968”
Width:              8’                     7’ 11.664”
Height:             8’6”                  8’ 5.568”
Jacks diameter 100cm (3.28’) wall thickness 5cm   ( +/- 25" diameter , 2" wall )
Jacks length 36meter (118’)  ( in 3 12m (39.37’). sections )
Jack stroke 1.5m per stroke, up to 30m.
30meter (98’) jacking length on hard bottom
Swell up to 100cm (3.28’)
The 2 caterpillar engines are there to take care of a swift lift from floating to out of the swell.
 Located Europe. Price only: $375,000


JACK UP BARGE  (Ref#1023)

jack up barge

Overhauled 2010, (4) modular pontoons w/external jacking units, 40’ x 8’ x 4’, solid handrail, hydraulic power pack drives the hydraulics  Price:  €540,000 (Euros)


JACK UP BARGE (Road Transportable) (Ref#683)

Year of Build 2007 / 2008. Length:  12.2 Meters (40’) , Beam:  10 Meters (32.8'), Depth:  1.2 Meters (3.9') , Max Load Capacity:  22 Tons, Deck Load:  4 Tons / M2, Jacking System: 8x Hydraulic Rams, Hull Construction: Steel Pontoons, Leg Length:  12m – 18m, Moonpool: 1 x 300mm, Unit is comprised of 4 pontoons, which when combined offer a barge of 10m x 12m.  Each of the individual pontoons are equipped with container style corners which allow them to be stacked for transport with twist locks.  Price:  €575,000 EURO
