TUGS TUGS TUGS

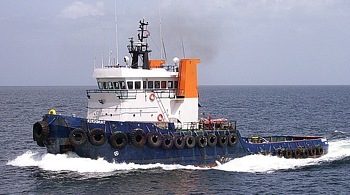

5000 HP TWIN SCREW TUGBOAT (Ref#347)

Built 1977, Foreign Flag, required special survey for COI Certification, 135’ x 34’ x 17’, 14’ draft, 50’ x 30’ clar deck, 557 GRT, 167 NRT, 65 ton bollard pull, 10 knots max speed, 150 gph fuel consumption, accommodations for 13, 9 cabins, main engines: (2) ALCO diesel 12-251F, gears: Lohman & Stolt 3.9:1, auxiliary Harbour Set 3306 Caterpillar, generators 288kva and 96 kva/Cat, bow thruster 208 hp, (1) single drum towing winch w/3600’ x 2” wire, capacities: 503T fuel, 133T fresh water, 50 T drilling water, navigation and communication equipment, located Caribbean Price: $925,000

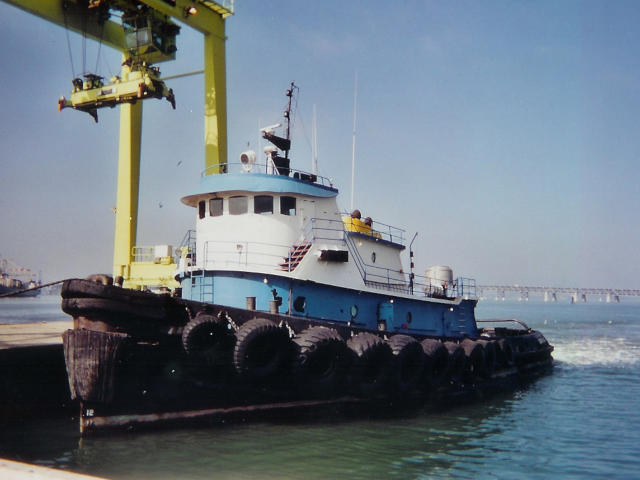

4300 HP TWIN SCREW TUGBOAT (Ref#3204)

Built 1970. 104'4" x 32'5" x 12'. Light draft 12, loaded draft 16'. GT 193, NT 131. Main engines: (2) EMD 12-645 E5, Total HP 4300 continuous at 900rpm. Bollard pull ahead: 98,968lbs, Bollard pull astern 57,058lbs. Bow winch, Markey. Tow winch Intercon, 2200' of 2.25" IWRC. Capacities: Fuel 105,000gal, lube 3000gal, potable water 7500gal. Accommodations for 12 people. Electronics, communication, navigation. Located West Coast USA. Price: $1,350,000

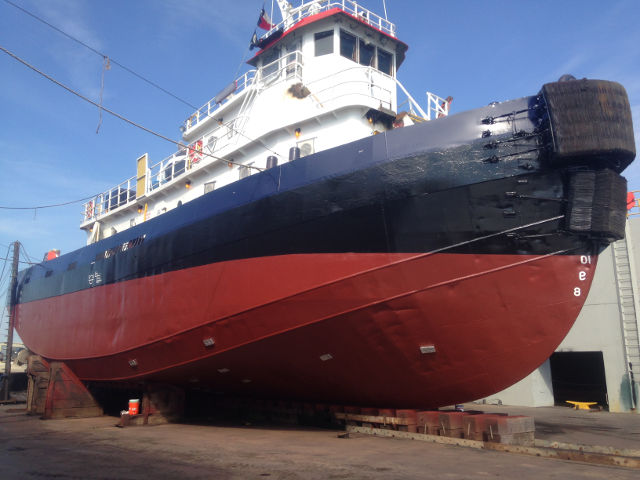

3900 HP TWIN SCREW TUGBOAT (Ref#2512)

Built 1977, Loadline current, Last drydock June 2016. 103' x 30'x 13.6', GRT 182, NRT 124. Main engines: (2) EMD 16-645-E6 1950HP each, 10,551 hours since last overhaul in 2011. Gearing: Falk LST reduction gears: 2.5:1, stbd gear overhauled 2014, Port gear requires repair at approximate cost of $100,000 for parts + labor. Generators: (2) Detroit diesel 6V71 60kw. Capacities: Fuel: 40,000gal, Lube & hydr oil: 700gal, Potable water: 14,700gal. Vertical winch. Electronics and Navigation. Located US Gulf. Price: $6,050,000

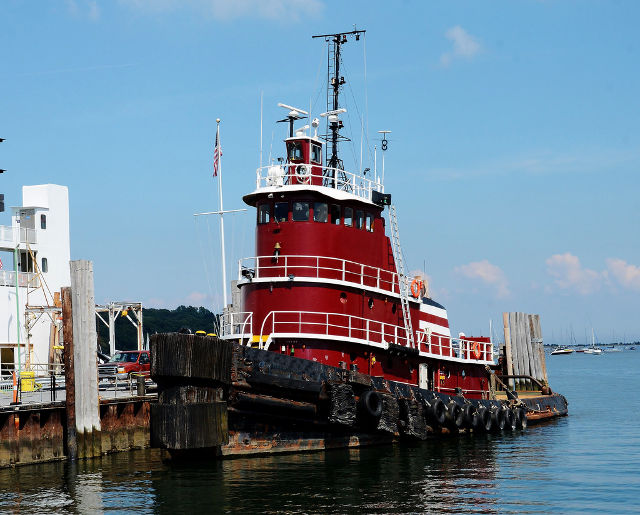

3600 HP TWIN SCREW TUGBOAT (Ref#2563)

Built 1968, 110'x30'x14.3', Draft loaded: 13', Draft light: 11.3'. GT 195, NT 132. Main engines: (2) EMD 16-645-CE2 (5,436 hours since overhaul in 2015), Bollard pull: 33.5ton. Reduction gears: Haley #2135 - 3.5:1. Towing gear: Markey single drum 2,000' of 2" towing wire. Capacities: Fuel oil 36,500gal, Lube oil 883gal, Potable water 5,000gal. Located Northeast USA. Price: $550,000

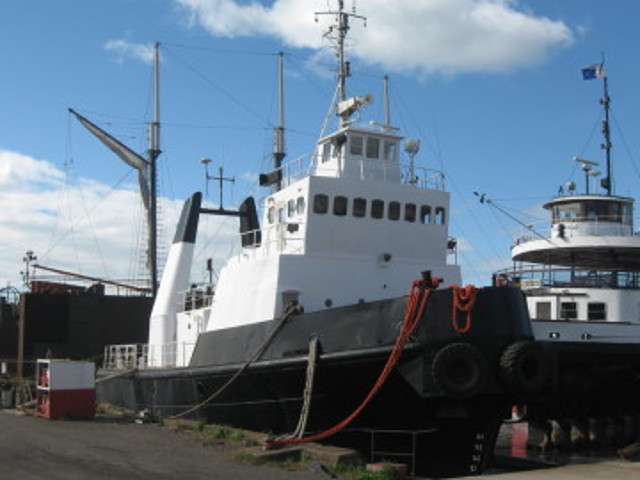

3220 HP TWIN SCREW TUGBOAT (Ref#1594)

Built 1967, GRT 451, 117’ x 31’ x 12’, Main engines: (2) Ruston Diesel – type ATCM (1610 BHP). Gears: Hindmarch-MWD reverse reduction gears at 2.6:1. Speed 13 knots. Generator: Mitsubishi 6D16T 100KW.  Boat has not been used in several years and the engines would need reworking. Structurally the boat is in excellent shape. The operating company also has a shipyard and would be willing to do work on the boat. The price is negotiable. Located Canada. Price: $305,000

3000 HP TUGBOAT  (Ref#3163)

Built 1980, 110’ x 32’ x 16’, draft 14’, Air draft 60’ mast up, 40’ mast down. Height of eye 35’. GT 284 (338 ITC), NT 193 (101 ITC). Main engines: (2) EMD-12-645-E6, Reduction gears Eisenwerke Reintjes WAV-1850 3.95:1. Bollard pull: 41 ton (82,500#). Fuel capacity: 48,000gal. 12 knots speed, 75K generator. Winch: Single drum Almon Johnson with 2000’ of 2” wire.
The owner of the tug has recently put $200,000 into refurbishing. To make it 100% it would require the following items to be done.
  A. Potable water piping must be inspected for any leaks and repaired where necessary: $5,000
  B. Air conditioner must be repaired or replaced: $9,000
  C. Winch requires work to make it fully functional: $25,000
Located New York. Price: $450,000

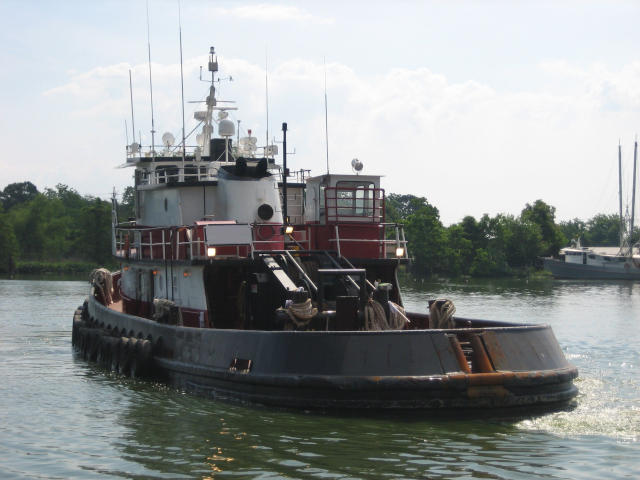

3000 HP TUGBOAT (Ref#1157)

Built 1972. 95’ x 26’ x 13’, 12’ draft, 195 GT, 132 NT, (2) Cat D398 diesel engines, Cat 7251 gears, ratio 3.93:1, (2) 471 GM30 kw generator, 10 knots free running speed, 10,000 gallons water capacity, 30,000 gallons fuel capacity, 880 gallons lube oil capacity, (2) Furuno FR7100D radar, (2) standard VHF, SEA 222N.C. SSB, Sitex DS100 fathometer, Sitex 7 GPS, Furuno auto pilot, A T & T Cellular phone, Intercon SP-150-100 double drum winch with 1.5” x 2000’ cable (ABS approved), (1) 3 bunk stateroom, (2) 1 bunk stateroom. Currently stacked, but the engines, air conditioning system, and generators are started up several times a week to keep all systems in the ready.  Price: $410,000

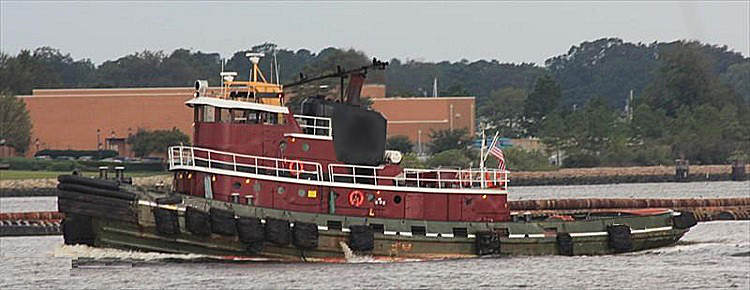

2875 HP SINGLE SCREW TUGBOAT (Ref#2628)

(2) Available. Built 1967. 107'4" x 28' x 17'2". GT 281, NT 191. Main engine: EMD Model 16-645E5. (2875 HP continuous, 3163 intermittent), Generators: 3-71 Detroit diesel 40KW and 4-71 Detroit Diesel. Fuel consumption: 2800 gal/day, 115 gal/hr. Fuel capacity 52,000 gal. Potable water: 4,000 gal. Accommodations: 11 men. Extensive data package including surveys and evaluations available. Located East Coast USA. Price:  $60,000 each

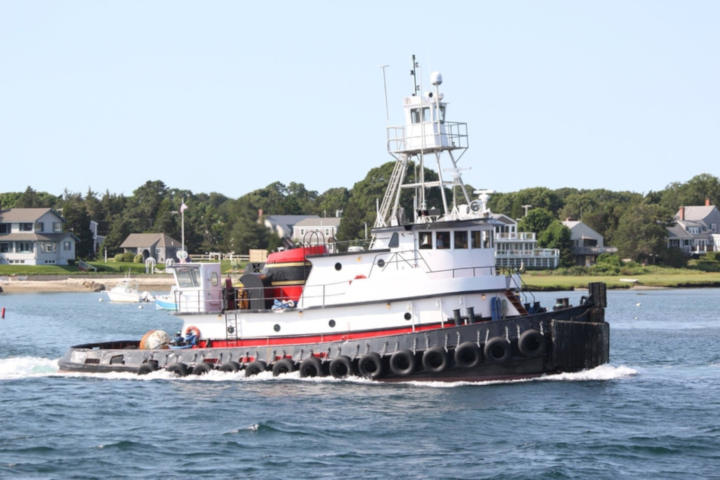

2800 HP TWIN SCREW TUGBOAT (Ref#3208)

Built 1975. 81.4' x 28' x 11.7'. GT 125, NT 85. Main engines: (2) Cummins QSK 38 Tier II diesel engines 1300 HP each, turbo aspirated.(Installed 2008).  Driving 4-blade bronze propeller in kort nozzle through ZF gears, model ZFW 4610. Hydraulic clutch and mairne erverse reduction gear with 5.360:1. Generators: (2) GM-471 driving 50kw AC generator. Accommodations: Galley. Hauled in 2012 to obtain condition for survey. Fuel capacity 38,000 gallons. Spent $700,000 on the boat in 2019. Located New England. Price: $1,850,000

2400 HP TWIN SCREW TUGBOAT (Ref#3138)

Built 1968. 100' x 27' x 11.5' draft. Height of eye 24'. GT 149, NT 101. Main engines: (2) CAT 3512. Lufkin RS-2118 reduction gear 5.222:1. Generators: (2) Detroit diesel 4-71, port 75kw at 1800rpm, stb 55kw at 1200rpm. Capacities: Fuel 32,000 gal, lube 758 gal, waste oil 400 gal, water 5,000 gal. Located Northeast US. Price: $575,000

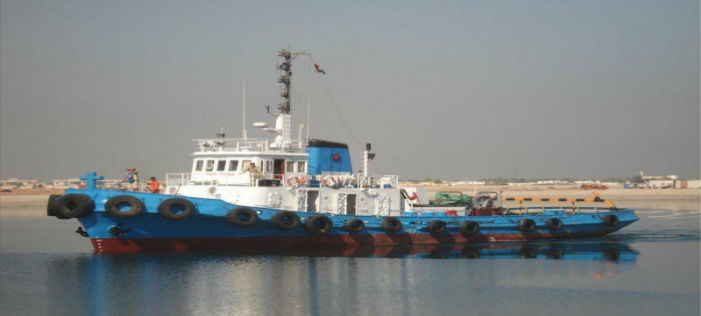

2200 HP TUG BOAT (Ref#1774)

Built 1966, 96’ x 27’ x 14’, 236 GT, 69 NT, main engines: (2) GM 149 (1100 hp each), twin disc gears, generators: (2) GM 62.5 kva GM371F-31518-50, 8-9 knots speed, approx. 3 tons/day fuel consumption, 70 ton fuel oil capacity, 60 tons fresh water capacity, 25 ton pollard pull, navigation and communication equipment, Class IRS (Last DD / SS May 2007), Panama Flag Price: $450,000

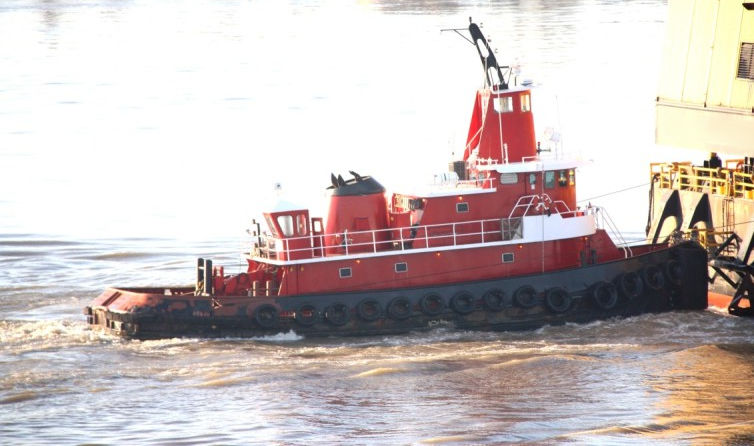

2000 HP TWIN SCREW TUGBOAT (Ref#2687)

Current COI, current Loadline in effect until 2023. Built 1982, 90' x 29' x 12.5', draft 9.5'. GT 228, NT 155 Main engines: (2) Detroit 16V149. Port engine hours: 8500, Stbd engine hours: 800.  Fuel consupmtion 100 gal/hr, Gears: Twin Disc MG540 6.18:1. Generators: (2) Detroit 4-71 40kw, Capacities: Fuel 3,800 gal, Lube 500 gal, Potable water 7,000 gal. Electronics and Communications. Located US Gulf. Price: $1,025,000

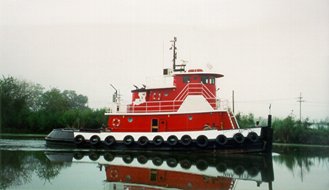

1200 HP TUGBOAT (Ref#2477)

Built 1998, 65’ x 22’ x 8.5’ depth, 20’ visibility, 81 GT, main engines: (2) Cummins NTA-14M, twin disc 516 5:1 reduction gears, 10 knots free running speed, 12,000 gal fuel capacity, 5.5 drums lube, 6400 gal potable water capacity, 4 bunks, full kitchen and bath, 3 crew Price: $1,050,000

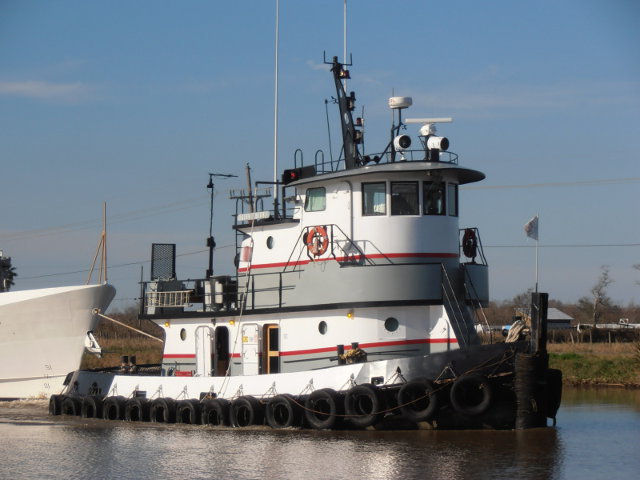

1200 HP TUGBOAT (Ref#1576)

Built 1982, 65’ x 22’, 6’ draft, 22’ eye level. Main engines: (2) GM 16V-71, Generators: (2) 30KW, Capacities: fuel 10,000gal, potable water 2,000gal. Price: $1,650,000

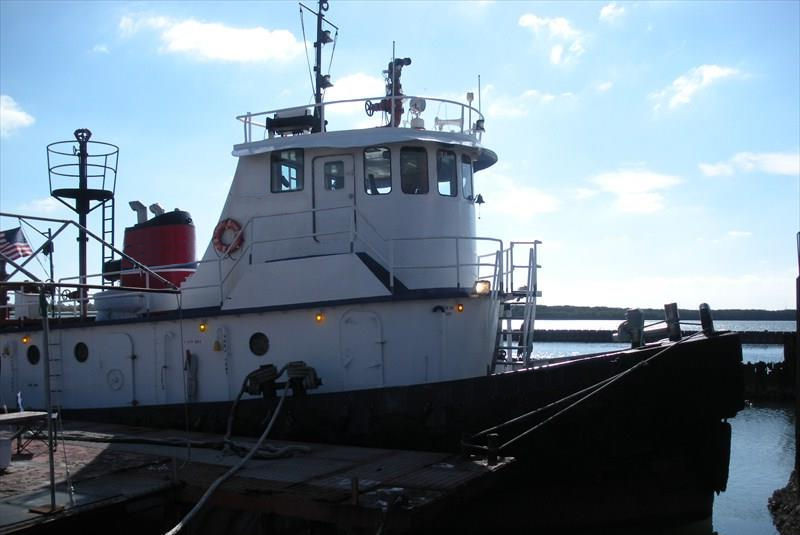

1200 HP TUG (Ref#2770)

Built 1974, 64’ x 24’ x 9'8", 121 GRT, 82 NRT. Main engines: (2) Detroit 16V92 diesels, Speed: 10 knots, (2) Detroit 371 Generators. Burns 1000 gallons per day in a 12 hour period. No winch, a tow line could be affixed to stern. Recent gauging looked good, anodes installed. Exterior in good condition, overall good condition, requires bunk room carpentry work. Located US Gulf. Price: $200,000

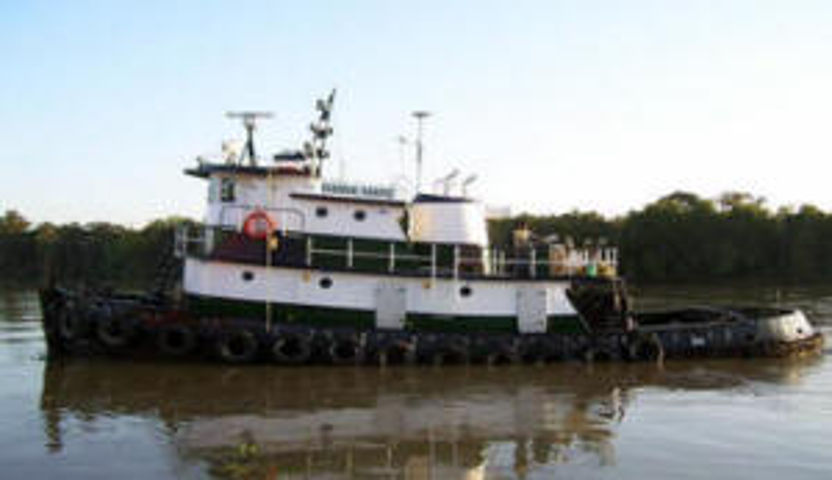

1200 HP TWIN SCREW TUG (Ref#2677a)

Built 1969. 61.4’ x 21.1’ x 7.5’, Operating draft 7’, Eye level 19’. GT 89, NT 61. Main engines: (2) Cat 3408, Twin Disc 516 5.1:1. Speed 10 knots. Capacities: Fuel 12,000 gal, Lube oil 125 gal, Fresh water 4,000 gal. Accommodations: 4 bunks. Located US Gulf. Price as is: $225,000
Work required:
1. Sandblast. Inspect and repair / replace any structural deficiencies. Paint entire vessel.
2. Install replacement clutch Model 516.
Price when work is completed: $425,000 OFF MARKET

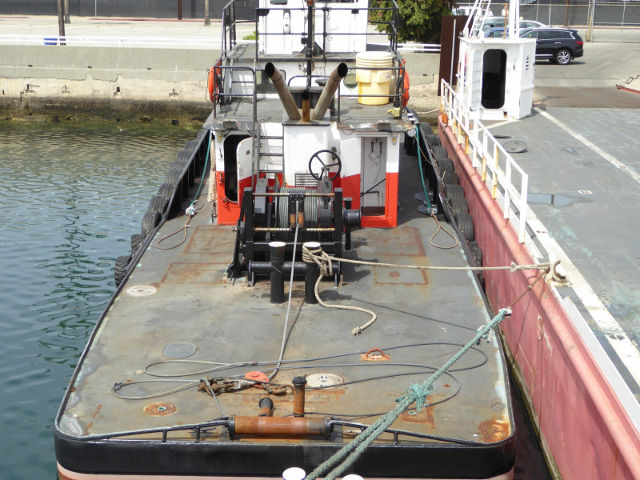

1200 HP TWIN SCREW TUGBOAT (Ref#2518)

Built 1969, Major repower and refurbishment in 2012/2013, at a cost of $500,000 including main engines, gears, gen sets, winch, electric AC/DC. 61' x 20' x 7'5", GRT 81, NRT 55, Main engine: Cummins QSK19 Tier II 600HP each, installed 12/2012. Reduction Gears: Twin Disc 4.50:1. Generator: Isuzu 4LE2 21kW. (2) propellers installed 12/2012 (3 blade, fixed pitch) Capacities: Diesel 8800gal, Hydraulic fluid 600gal. Nor-Crane hydraulic winch, 1-1/4” x 1500'. Communications and Electronics. Located West Coast US. Price: $625,000

950 HP TWIN SCREW TUGBOAT (Ref#2469a)

Built 1960 - Rebuilt 2004, 47.3' x 14.5' x 8' draft, 32 GT, 17 NT, (2) Detroit Series 60 Tier 2, 10 kw Northern Lights generator, 2500 gallon fuel capacity (3 tanks 2 belly, 1 stern), 200 gal fresh water capacity, 10 knots max speed, 8 knots cruising speed, single drum hydraulic winch w/several hundred feet of spectra, trash pump, full electronics, galley, 4 crew, galley, navigation equipment, USCG inspection up to date Price: $420,000

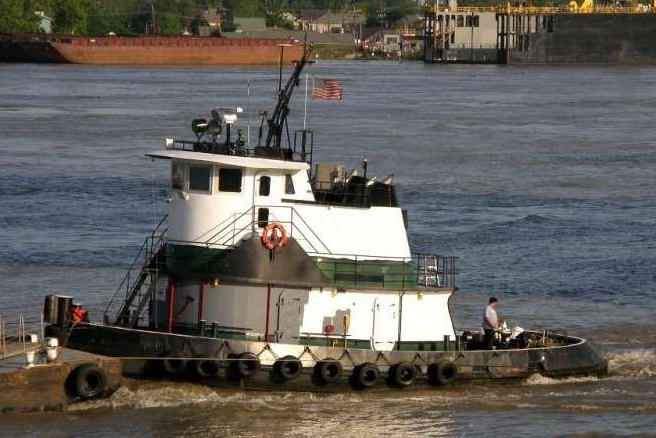

800 HP TWIN SCREW TUGBOAT (Ref#2903)

Built 1980, 55' x 21' x 6', GT 68, NT 46. Main engines: GM 8V92 diesels, TwinDisc 4.5:1. Boat was hauled Feb 2019: Scraped, bottom painted, new zincs. Work done on keel cooler, plumbing system, box redone, some gearing reworked, new tiller system. We have learned that the 2 engines are being completely rebuilt by the owner that has experience and well qualified mechanics. This will be an in hull rebuild. The shafts were recently done. The price of the boat would go up after the rebuild and we possibly can get the approximation of increase in cost soon.  Located Great Lakes. Price: $425,000

VESSELS WANTED

Let us know if you have any vessels, barges, dredges or related equipment for sale.

Keep us in your files for any equipment that may become available in the future.
