PUSH BOATS AND TUG BOATS FOR SALE
For additional information please contact Anthony Iorio: Mobile (516) 425 7463 - Tel (516) 536 7375 - rigs@sunmachinery.com

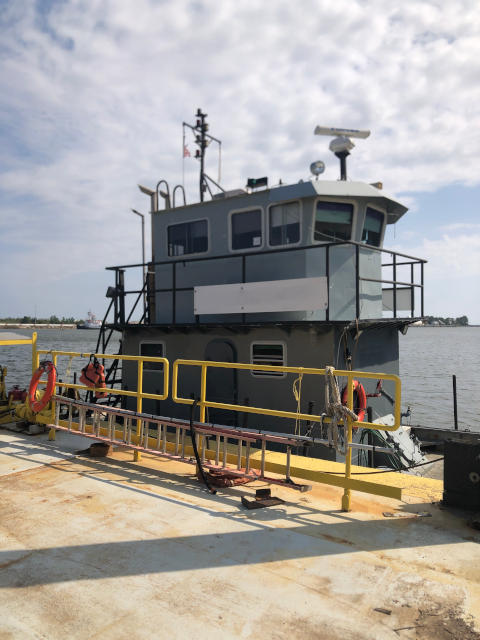

400 HP TWIN SCREW PUSH BOAT (Ref#3653)
Built 1990. 50’ x 15’ x Draft 3.5 – 4’’, Bought from the US Navy when it had 67 hours on it. Main engines: (2) 671 Detroits, 12KVa generator, No flanking rudders. Keel cooled. Sleeps 5. Located Alabama. Price: $55,000
400 HP TUGBOAT WITH PUSH KNEES (Ref#3702)
Built 1957, built in Germany, Dutch Flag, 21 x 6 x 22.5m, Cat D3408, Mitsubishi generator S4, 6 berths, heating in commodations, push knee and A-frame, (2) forward winches for pushing, Located Europe Price $175,000 Euros

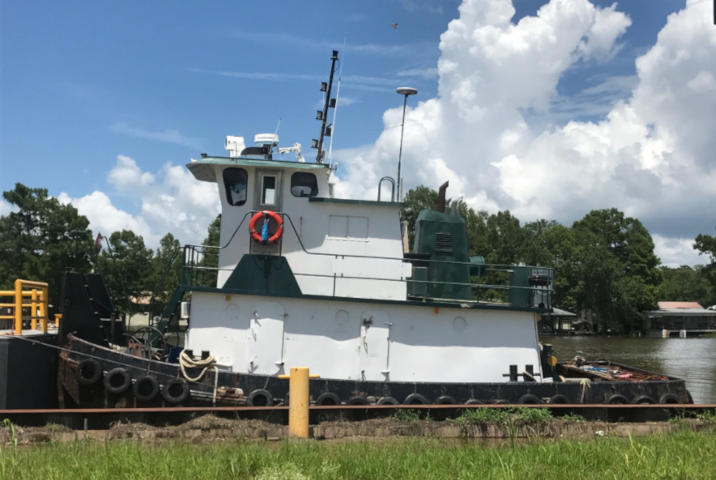

400 HP TWIN SCREW PUSHBOAT (Ref#3135)
Built 1971. 41.7' x 18.7' x 5.6'. Light draft 4.6', loaded draft 5.6'. Height 28'. GRT 47, NRT 32. Main engines: (2) GM 671N diesels, keel cooled, two generators, living accommodations, galley, laundry, shower, currently in working fleet, being sold due to lack of work, pushknees, COD expire 3/31/21. Located Louisiana. Price: $100,000

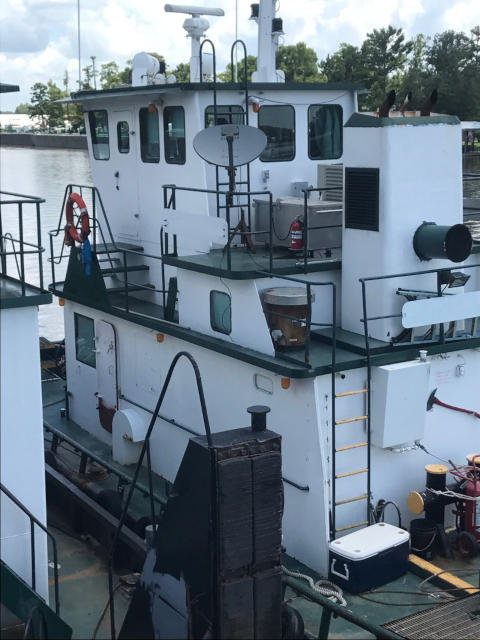

400 HP TWIN SCREW PUSHBOAT (Ref#3136)
Built 1970. 45' x 18' x 5.8'. GRT 31, NRT 25. Main engines: (2) GM 671N diesels, reduction gears: 3:1, keel cooled, two generators, living accommodations, galley, laundry, shower, a project boat, has been out of service and tied up, needs parts and work to put back into use, COD expired 11/30/20, located Louisiana. Price: $55,000

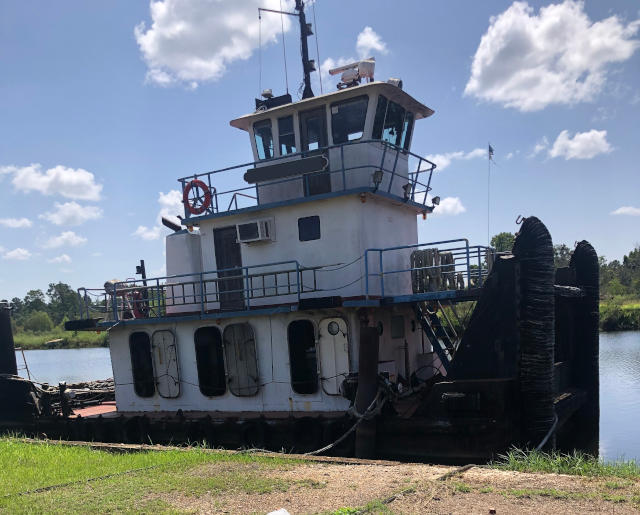

480 HP TWIN SCREW PUSHBOAT (Ref#3485)
Built 1980. 41.1' x 20' x 6.7'. 3 levels. 22' eye level. Main engines: (2) GM 8V-71NA diesels. TwinDisc 514C 4.5:1. (2) 4-blade 50"x35" fixed pitch stainless steel wheels. Air started, fresh water cooled via channel-type keel coolers. Vessel constructed to accommodate up to 12V71 engines, gears, and wheels. Generators: (2) GM 2-71 diesel driving a Delco 220/450v at 20kw. Fuel capacity: 6,000 gal (across 3 tanks). Aux equipment: 5 HP Dresser series 300 and 3HP Dresser Series 400 air compressors. (2) 7 1/2 HP Vickers hydraulic steering pumps. (1) 7 1/2HP MP fire pump with 1 1/2" discharge. Electric fresh water pump, (2) bilge sump pumps, battery charger, Humphrey Marine Sewage treatment plant Model 10. Navigation, electronics, communications. (2) manually operated WinTech 5-ton barge make-up winches. Galley: Refrigerator / freezer, oven, microwave, water heater, (3) window-mounted AC units. Survey available. Valued in 2014 $285,000. At the time of its original construction, the vessel was purposely fitted with oversized engine girders that are capable of accommodating larger GM Series 12V71 engines and compatifble reduction gears which together with the hull’s capability of reported being able to accommodate larger sized propellers, would significantly increase the vessel’s overall horsepower and enhance its operating capabilities should such an upgrade be desired. Last used 2019, used basically in brackish water. Built heavy duty. Located Alabama. Price: $75,000

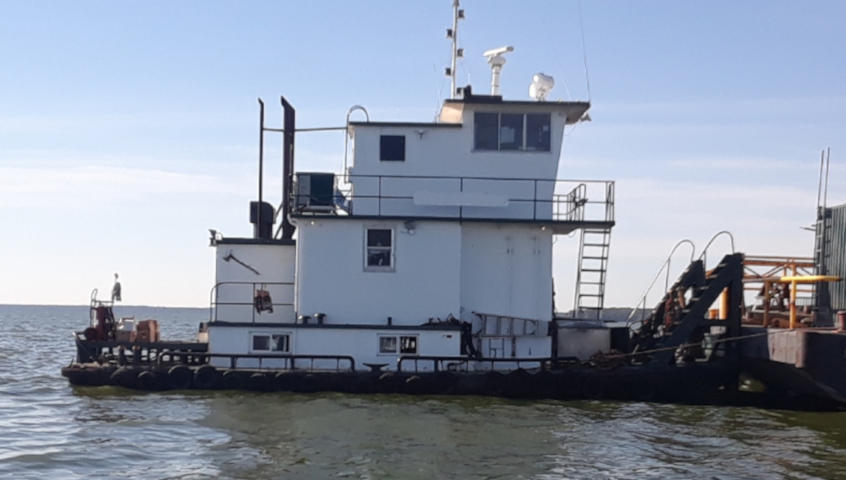

600 HP TWIN SCREW PUSHBOAT (Ref#3134)
Built 1970. 46.8' x 18' x 4.6'. GRT 48, NRT 32. GM 8V71 diesels. Allison reduction gears 3.75:1., keel cooled, living accommodations, galley, laundry, shower, one generator, recently removed from working fleet, being sold due to lack of work, pushknees, COD expire 3/31/21, located Louisiana. Price: $90,000

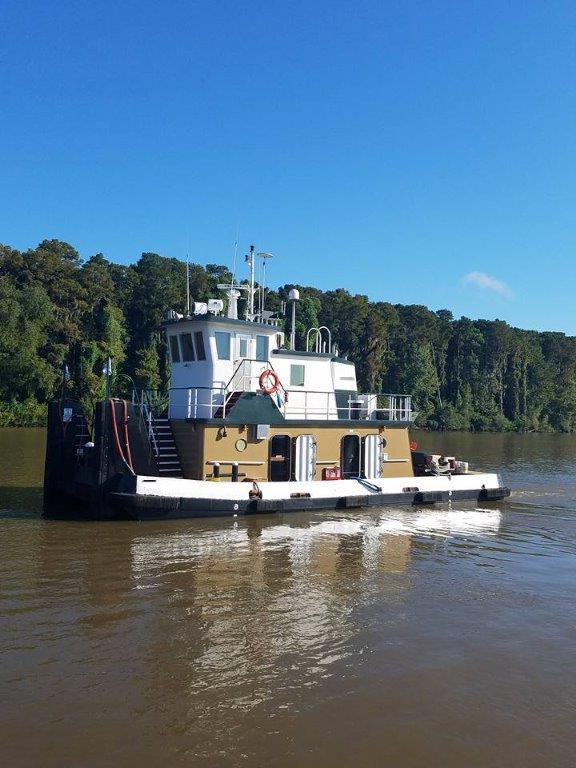

900 HP TWIN SCREW PUSHBOAT (Ref#3683a and #3683b)
Two available, built 2007, COI and Sub M easily reactivated, 49’ x 22’ x 6.6’, two decks and pilot house, (2) Detroit Series 60 diesel engines (900 hp total), keel cooled, (2) Twin Disc MG514C reverse reductions gear with 5.16:1 ratio, (2) generators 30 kw Stamford with John Deere 4.5L diesel engine, keel cooled. 48 GRT, 38 NRT, (2) 46” x 57” steering rudders, (2) 48” x 46” five blade stainless steel propellers. Electric over hydraulic steering with (2) 7.5 hp electric motors, port and starboard 20 ton wire line winches. Capacities: 8200 gal fuel oil, 450 gal lube oil, 450 gal slop oil, 150 gal hydraulic, 2300 gal potable water. Safety and life saving equipment, wheel house extensively equipped with communication and control equipment, external steering station, air conditioning, Captain’s quarters, bunk room, head, shower, equipped galley, 9-2020 Surveys available, on blocks in Louisiana yard Price: $700,000 each

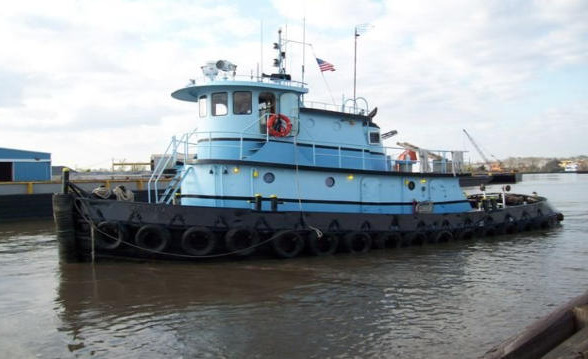

900 HP TUG BOAT (Ref#3509a)
Built 1972, rebuilt 1993, 62’ x 22’ x 6’-8.5’ draft, 89 GT, 61 NT, main engines: (2) Cat 3406, (2) 30kw generators, 10,000 gallon fuel capacity, 6,000 gallon potable water capacity, 440 gallons lube capacity, working Louisiana, COI. Price: $600,000
900 HP TWIN SCREW LUGGER TUG (Ref#3530)
Built 1993. 60' x 20' x 9'. Operating draft: 6'. Eye level 19'. Deck space: 18' x 18'. GT 68, NT 54. Main engines: (2) GM 8V-92s, TwinDisc MG514 5:1, 50" x 40" wheels. Hydraulic steering. Speed: 10mph. Generators: (2) Isuzu-4JG1T & GM 2-71. Capacities: Fuel 10,000 gal, potable water 10,000 gal, lube oil 55 gal. Navigation, electronics, communications. Located Louisiana. Price: $325,000
900 HP TWIN SCREW TUGBOAT (Ref#3322)
Built 1966, 55.6' x 19' x 7.5', 5.5' to 6.5'. GT 81, NT 55. Elevated pilot house. Total height: 38', eye level 28'. Main engines: (2) Cummins (twin 450 hp) with TwinDisc 4.59:1. Wheel: 48x44. Auxiliary: (2) Cummins Onan. Capacities: fuel 6,000 gal, water 5,000 gal. Lube oil 100 gal. Electronics, navigation, communication. Steel work drydock November 2020, Subchapter M. Located Louisiana. Price: $525,000

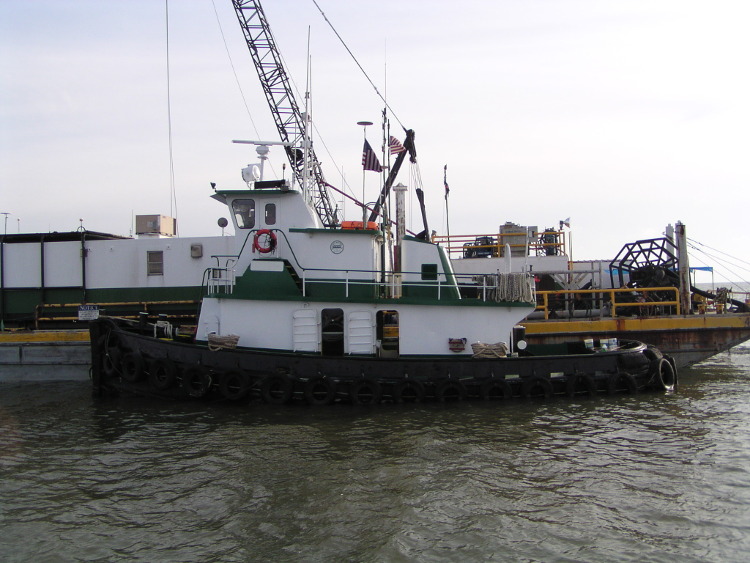

900 HP TWIN SCREW TUGBOAT (Ref#3441)
Built 1970, 58.2' x 21.4' x 7.9'. GT 85. Light draft: 6', Draft loaded: 9'. Total height (light) 36'. Main engines: (2) QSM II Cummins diesel engine (low hours), hydraulic winches operated from pilot house, late model generator, Fuel capacity: 7,000 gal, water 3,000 gal. Total bunks: 6. Good clean condition. Will cost approximately $75,000 to get a COI. Good condition, in service as of 10-20. Dry docked 2020, Located Louisiana. Price: $525,000

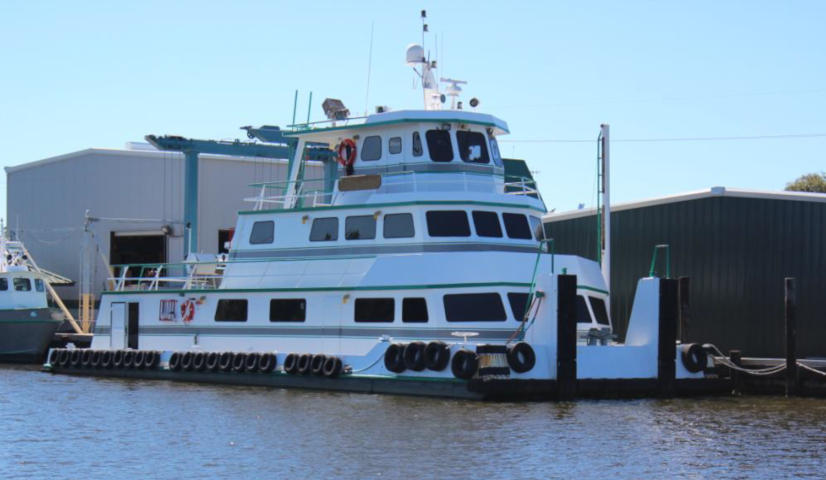

1000 HP TWIN SCREW PUSHBOAT (Ref#3216)
Built 1999. Welded Steel construction, square bow and stern. Both ends raked. 68' x 28' x 4'. GT 50. (3) decks. (2) 12' x 12" pushknees. Main engines: (2) Cummins 855 diesels (400HP). Twin disc gears, 4.5:1. Electric start. Keel cooled. Generators: (2) 30kw Kubota generators powered by 4-cylinder diesel engines. Capacities: Fuel 7,000 gal, Potable water 20,000 gal. Accommodations: 4-man bunk forward, 4-man bunk center, 2-man bunk aft, 2-man bunk pilot house. Passengers 20. (3) baths, 1 shower. Full galley. Fire extinguishers. Life rafts, life ring. Coast Guard sanitation device. Just out of drydock 8-2018. Fresh anodes, fresh paint on bottom and sides. This vessel serviced the inland oil rigs and Gulf coast rigs as a standby motor vessel and quarters boat. Located Louisiana. Appraised at $1,200,000. Price: $750,000

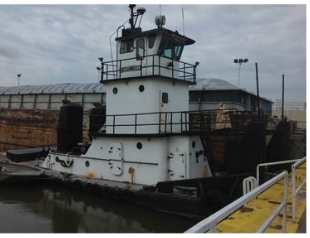

1020 HP PUSH BOAT (Ref#3670)
Built 1967, Reworked 2015 and not used since, 57’ x 17.6’, x 6’, main engines (2) GM 12V71T1 diesel engines (510 hp each), engine hours 21,784, keel cooled. Marine gears Twin Disc 514B (4.5:1), John Deere generator, Gorman Rupp 3” fire equipment, 54” x 45” x 4” propellers, steering is manual over hydraulic, fuel capacity 6000 gallons, fresh water capacity 1,500 gallons, repairs made in 2015 (at a cost over $100,000, detailed list available): dry dock, steering rudder, wheels, tailshafts, cutlass bearings, flanking rudder, bumper pads, tank repairs, generator, exhaust system. Clean condition, ready for use. Located Indiana. Price: $250,000
1155 HP TRIPLE SCREW PUSHBOAT (Ref#3146)
Built 1974. 60' x 24' x 7', actual draft 5'6" – 6', Steel hull. GT 86, NT 58. Main engines: (3) Cat C12s with 514 clutches 4.5:1., (one engine requires a starter), used in fresh water, currently a day boat, company was in the process of converting to an overnight boat, work that needs to be done: currently two bunks in place, no galley, partial plumbing done for toilet and shower, anticipated conversion cost $20,000, owned by a major company who had excellent preventative maintenance system in place, located US Gulf. Price: $300,000
1200 HP PUSH BOAT (Ref#3714)
Built 1980, 62’ x 24’ x 8.7’, 6’ draft, (2) Cummins KTA 19 engines (600 hp each), (2) driving rudders aft of the propellers, (2) 4-blade propellers (High DAR), (2) Kohler 40 kw generators, telescoping wheelhouse, fire alarm system, engine alarm system, general alarm system, emergency lighting on all levels, COI, located New York USA, survey available Price: $625,000

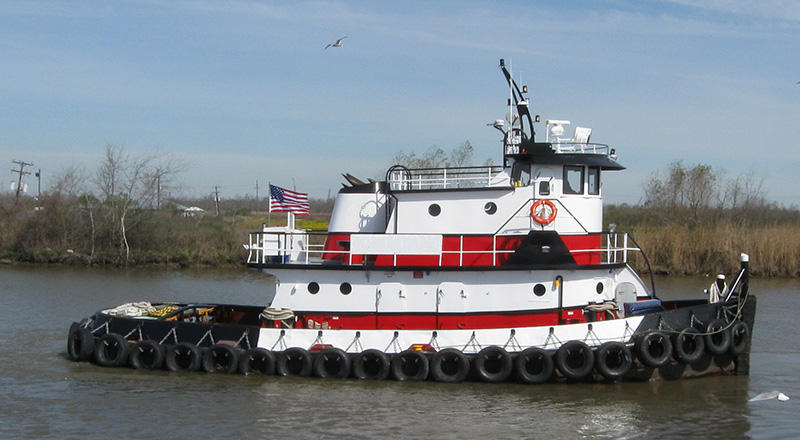

1400 HP TWIN SCREW TUGBOAT (Ref#3493)
Built 1978. 65' x 24' x 8.5'. Draft 7'. Lower eye level 21', crow's nest recently installed with 35' eye level (at a cost of $100,000). Main engines: (2) Cummins QSK-19. Speed: 8 knots. Generators: (2) Detroit diesels 40kw. Capacities: fuel 10,000 gal, potable water 8,000 gal, lube oil 150 gal, hydraulic oil 100 gal. Electronics, communications, navigation. New COI as of 10-2020. Located US Gulf. Price: $1,200,000

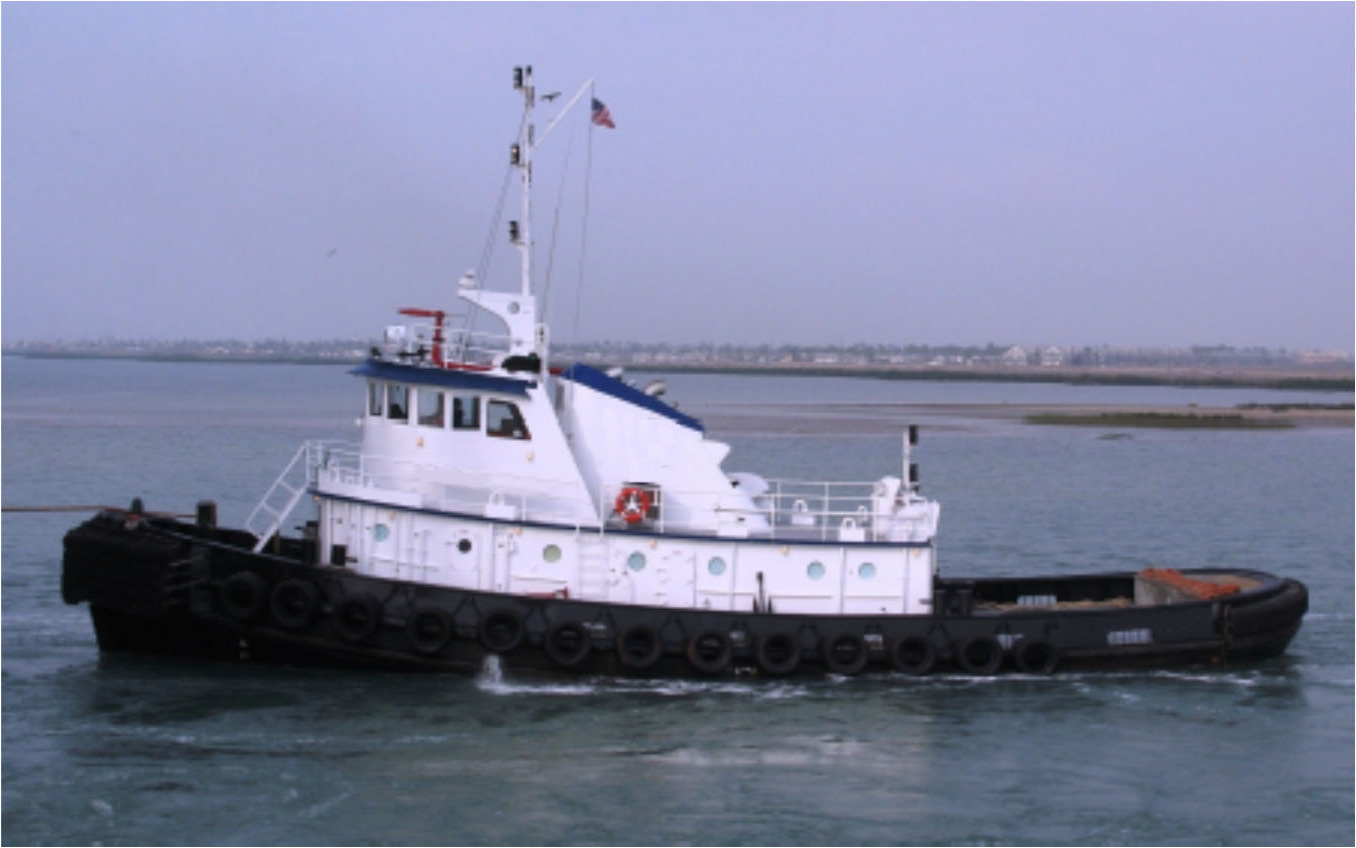

3900 HP TUGBOAT (Ref#3678)
Built 1975, Rebuilt 2004, 90’ x 28’ x 15’, 12’ deep draft, 18’5” height of eye, 152GT, main engines: (2) EMD 12-645-E2 1500hp each, (2) Falk 1230MRD-C reduction gears, (2) 92” x 68” propellers, 2-4 blade in nozzles, effective horsepower 3900, generators: (2) Detroit diesel 671 75kw each, 60 hz, 480v, 44 metric tonnes bollard pull, 26,000 gal fuel oil capacity, 4000 gallons potable water capacity, 400 gallons lube oil storage, 6 berths, fire monitor Detroit diesel 671 2000 gpm flow, 262’ total dynamic head, 40 hp Captan Bensen Electric, 2-1/2” x 300’ bow hawser. Currently in drydock, will be sandblasted and painted. Subchapter M when sold Price: $775,000
4000 HP TUGBOAT (Ref#3675)
Built 1977 in Spain, upgraded in 1998, 110’ x 29’ x 16’, BV+Hull+MACH tug, unrestricted navigation, 290 GT. Main engines: (2) C 3516 DITA 2000 hp each installed 1998, Generator Cat 3304 105kva, Cat 3306 175 kva, propulsion one pitch propeller in Tow Master Nozzle 5 rudder,48 ton BP, 2 drum towing winch, 65T towing hook NWL tested load to 80T, deck crane, accommodations for 13, located Europe Price: $250,000

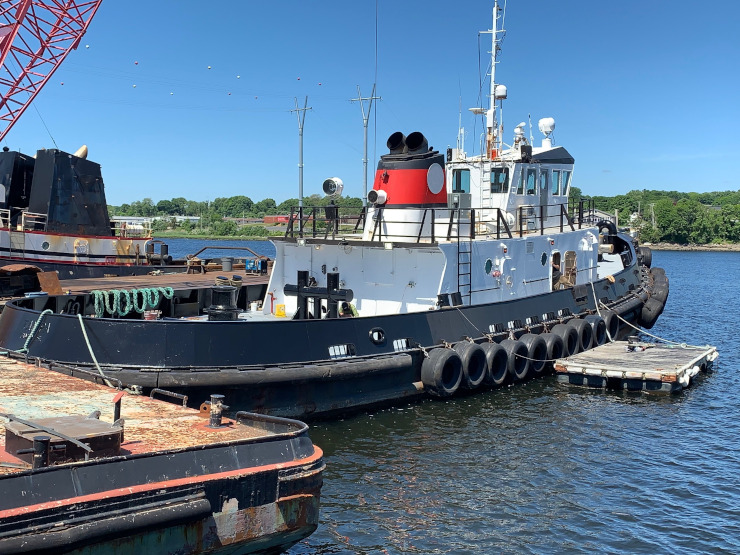

6000 HP TWIN SCREW TUGBOAT (Ref#3295)
Built 1985. ABS. 94.4' x 30' x 11.9'. GT 190, NT 129. Main engines: (2) EMD 16-645-E5 turbo diesels, turning (2) 99" x 105" 4-bladed fixed-pitch stainless propellers in kort nozzles. Each nozzle is fitted with (3) rudders that work in tandem and 4 flanking rudders. Generators: (1) 99kw Detroit diesel genset and (1) 99kw John Deere genset. Capacities: fuel 30,000 gal, potable water 6,000 gal, lube and hydraulic oil 1,650 gal. Towing equipment: JonRie 200 line winch on bow, single electric capstan on stern. Located Northeast US. Dry Docked on 9/28/2020 Price: $650,000
